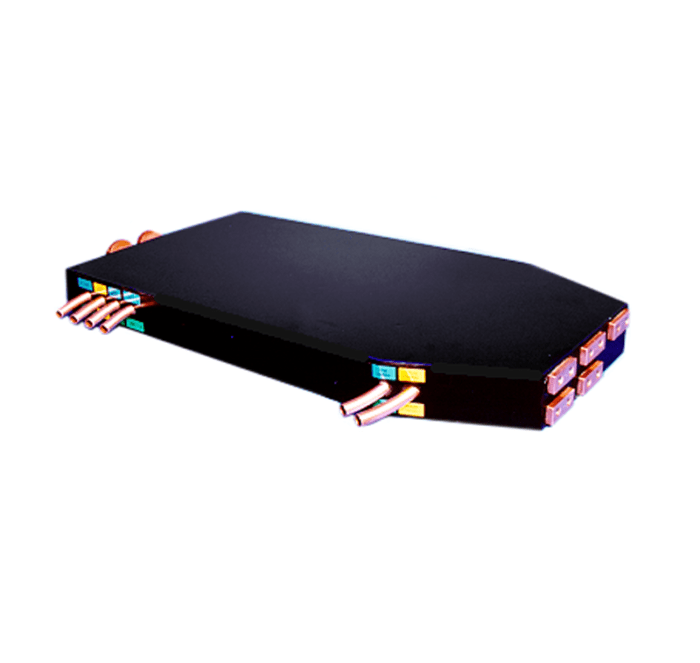

Narrow Profile Transformer

For frequencies of 5 kHz to 40 kHz that require a narrow width transformer, see more details for further information on the Jackson Narrow Profile High-Frequency Transformer.

JACKSON Narrow Profile High-Frequency Transformers are customized to meet customer requirements and are available in various ratings to match the appropriate load. All designs are optimized using our exclusive computer programs to ensure the highest quality product.

A series of narrow profile transformers can be placed in a side-by-side relationship for simultaneously induction heating a plurality of different bearing surfaces located on a long shaft, such as the bearing surfaces of a crankshaft of an engine.

Available from 500 to 2000 volts, frequency from 5 kHz to 40 kHz up to 1500 kVA.

JACKSON Narrow Profile Transformers are water-cooled copper windings that utilize a unique interleaved construction allowing for a compact and efficient Transformer.

Our transformers are manufactured using ferrite core construction that have low exciting current and lower core losses than high-performance steels.

JACKSON Narrow Profile Transformers are encapsulated for protection from the harsh environment and physical abuse.

Input and Output connections can be designed to meet your specific requirements.

Available in Metric or Standard U.S. Threads.

For a high-quality customized Narrow Profile High-Frequency Transformer – Specify a JACKSON!
