Rectangular Transformer

For rectangular style transformers in the frequency range of 400 Hz to 100 kHz, see more detail for further information on the Jackson Rectangular Transformer.

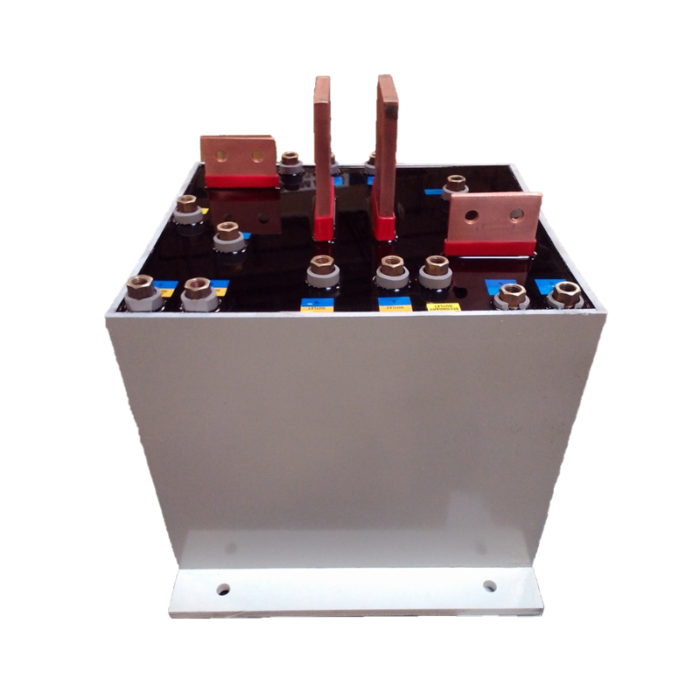

JACKSON Rectangular Transformers are customized to meet customer requirements and are available in various ratings to match the appropriate load. All designs are optimized utilizing our exclusive computer programs to ensure the highest quality product.

The JACKSON Rectangular Transformer is a proven quality product with hundreds of units operating continuously throughout the world since 1969.

Available from 200 to 3000 volts, 400 Hz to 100 kHz, up to 10,000 kVA and are available as isolation (RV) or autotransformer (RA).

JACKSON Rectangular Transformers are available in either open or encapsulated designs.

The water-cooled copper windings utilize a unique interleaved construction allowing for a compact and efficient transformer.

For frequencies up to 10 kHz, the water-cooled rectangular-shaped cores are made utilizing special thin electrical-grade steel to minimize core and eddy current losses.

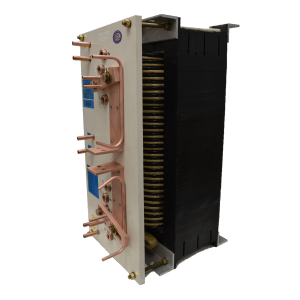

For frequencies above 10 kHz, the cores are manufactured using special ferrites that have very low core loss and low exciting current.

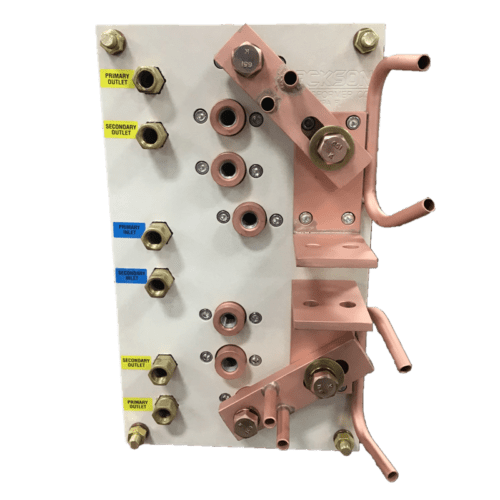

Tap changing is made easy with the JACKSON uniquely designed swing link tap changing arrangement or straight terminals.

Input and output connections can be designed to meet your specific requirements.

Available in Metric or Standard U.S. Threads.

For a high-quality customized Rectangular Transformer – Specify a JACKSON!
