Toroidal Transformer

For isolation or auto-transformer designs in a frequency range of 200 Hz to 25 kHz, see more details for further information on the Jackson Toroidal Transformer.

JACKSON Toroidal Transformers are customized to meet customer requirements and are available in various ratings to match the appropriate load.
All designs are optimized utilizing our exclusive computer programs to ensure the highest quality product.

The JACKSON Toroidal Transformer is a proven quality product with thousands of units operating throughout the world since 1966.

Available from 200 to 4000 volts, 200 Hz to 25 kHz, up to 3000 kVA, and are available as isolation (TV) or autotransformers (TA).

JACKSON Toroidal Transformers are totally encapsulated for use in any environment and are vibration-free.

The windings are made of copper tubing and are water-cooled.

The water-cooled toroidal cores are made utilizing special thin electrical-grade steel to minimize core and eddy current losses.

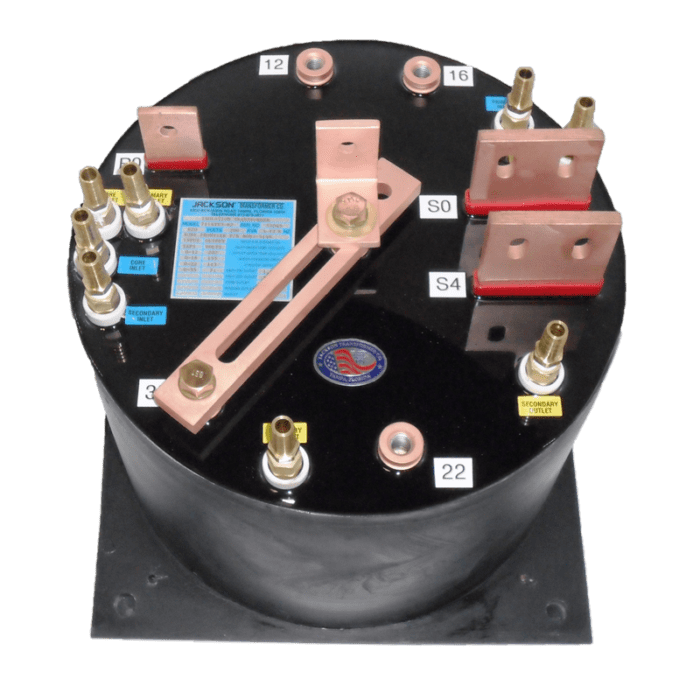

Tap changing is made easy with the JACKSON uniquely designed swing link tap changing arrangement or straight terminals.

Input and output connections can be designed to meet your specific requirements.

Available in Metric or Standard U.S. Threads.

For a high-quality customized Toroidal Transformer – Specify a JACKSON.
